Location: SEI Equipment> Roll Handling Equipment>Roll Hauler LRCR Clamp Rotator
RH100048LRCR-S with optional scale, Clamp rotator and 48" of lift

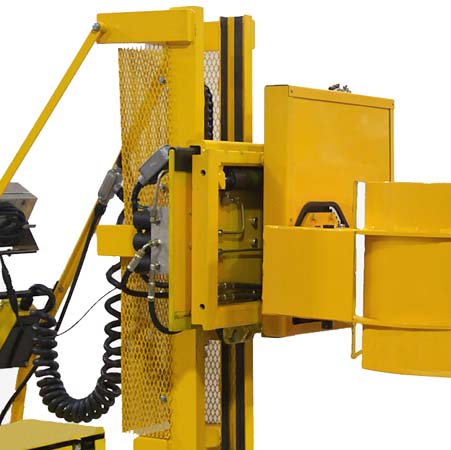

Optional Side Shifter Available

Contact Us Today! Toll Free 1-877-775-2211 or e-mail us at sales@seiequipment.com

These units are available on a trial towards purchase plan with all trial fees waived if purchased within trial period.
Roll Hauler With LRCR Jaws
Overview
Ergonomic Self-Powered Roll Handling
Eliminates Injuries Associated with Manual Handling and Pushing Carts
Replaces the need for multiple hoisting systems at each Converting Machine
RCR Clamping Jaws Available to Handle Rolls from 18" to42" in Diameter
Clamping Jaws Rotate 360 Degrees in Either Direction
Lift Heights Available to 10 Feet with Load Capacities to 1000 lb.

The Roll-Hauler™ makes an easy task of gripping rolls in a vertical position, transporting them to converting machines and rotating 90 degrees for placement. The Roll-Hauler™ is equipped with a large 24-volt industrial battery that will operate continuously for an 8-hour shift. An optional battery roll out tray with conveyor stand/charger station and additional battery will provide power for a three-shift operation.

Features
  • Roll Capacities up to 1000 lb on 12" load center
  • Width: 28" Length: 85.75" Height (collapsed): 77.25"
  • Roll Lift Height 63" to center of core with single stage mast
  • Roll Lift Heights 122" to center of core with two-stage mast.
  • Gradient Performance: 15% no load, 10% with load
  • Battery: Deka 12D85-9 24 volt Industrial
  • Drive Wheel: 9" X 3" rubber or polyurethane
  • Load Wheels: (2) 3" x 4" tandem polyurethane
  • Stability Casters: (2) polyurethane
  • Electro-Magnetic disc brake
  • Electronic Speed Controller
  • Crawl Speed with Handle in Upright Position
  • Key Switch on/off, Horn, Battery Discharge Indicator
  • Clamping Jaws are vulcanized with a soft white rubber material
    to eliminate slippage. Oversized pads cover greater surface
    areas for pressure sensitive materials and films.
  • Available with clamps to handle roll diameters:
    42" to 18" in diameter
  • Paint: Powder Coating Safety Orange
Options
  • External 110/volt Battery Charger
  • Side Shifter for precise roll placement
  • "Steel-It" Epoxy Paint (FDA Approved)
  • "EE" Rating (Factory Mutual Approved)
  • Scale system for check weighing
  • Battery rollout tray with conveyor stand
  • Additional Battery for 3 shift operations
Pricing
Model #
Description
Capacity
Lift Height
Weight
Price
RH80048LRCR Roll Hauler/48" of Lift Height
1000 lbs
48"
2450 lbs.
$24,700.00
DH80096LRCR Roll Hauler/96" of Lift Height
1000 lbs
96"
2450 lbs.
$25,900.00
DH800108LRCR Additional Roll Lift Height to 108" vertical lift height (Two Stage Mast)
1000 lbs
108"
2450 lbs.
$26,000.00
Options
Model #
Description
Price
  Side-Shifter with 8" of travel: 4" left and 4" right of center
$2,425.00
Charger 24 Volt Auto Stop/Start Battery Charger (110Volt/1 phase/60 hertz)
$570.00
Charger(Export) 24 Volt Auto Stop/Start Battery Charger (208/240/480/1 phase/50 hertz) Export Only
$1,540.00
-SPA F.D.A. approved epoxy with Stainless Steel Hardware
$1,200.00
EE "EE" Rating (Factory Mutual Approved)
$2,450.00
-S Non-intrinsically Safe Scale with Doran™ Model 8000XL Indicator
$2,550.00
-IS Intrinsically Safe Scale with Doran™ Model 8000IS Indicator-Class I,II,III, Div. 1,2 Group A,B,C,D,E,F,G
$3,750.00
  Battery Roll out Tray with conveyor stand to support 2 batteries. $2,600.00
