These units are available on a trial towards purchase plan of $900 a month with all trial fees waived if purchased within trial period.

SELF POWERED ROLL CLAMP ROTATOR

MODEL RCR20

CLAMPS AND ROTATES ROLLS MATERIALS 360 DEGREES

Features
  • Completely self-contained power with no hydraulic or electrical connections required
  • .Clamp & rotation functions mounted in control box with magnetic backing on coil cord to lift truck with safety clamp & unclamp features to eliminate accidental slippage.
  • Control box cord equipped with quick disconnect
  • Adjustable rotation speed and clamping pressure with variable flow and pressure regulators.
  • 360-degree continuous rotation, left or right.
  • Mounts on any ITA Class II carriage of lift truck, walkie stacker or straddle stacker.
  • Quick and simple 2 bolt removal from lift truck without any hydraulic or electrical connections.
Specifications
  • Maximum load capacity: 2,000 lb./ 908 kg.
  • Handle roll diameters if measured through the core from 18” / 457 mm to 42” / 1067 mm
  • Rotation: 360 degrees, continuous
  • Rubber faced clamping pads: 16” / 406 mm in overall height.

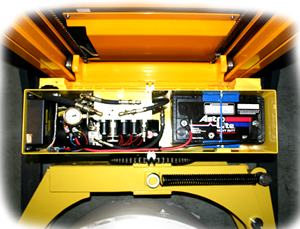

  • Battery pack and internal automatic charger included in power compartment
  • Dimensions: Maximum Width: 47”/ 1194mm
             Maximum Length: 48”/1219mm
  • Attachment Weight: 825 lb.
  • Finish: Powder Coat Safety Yellow
Pricing
Model #
Description
Capacity
Dia. Handled
Weight
Price
RCR 20 Self Powered Roll Clamp for lift trucks and Stackers
2000 lbs
18" to 42"
825 lbs.
$14,400.00
