Product
Catalog
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
 |
Critical Services Series SAFETY
Coupling
Patented, other patents
pending
|
The Lasso "LQC" is the next
generation of quick couplings designed as an option to
replace conventional "cam & groove" couplings
that are used in critical service applications.
The LQC is engineered to be used
in conjunction with hoses and loading arms.
|

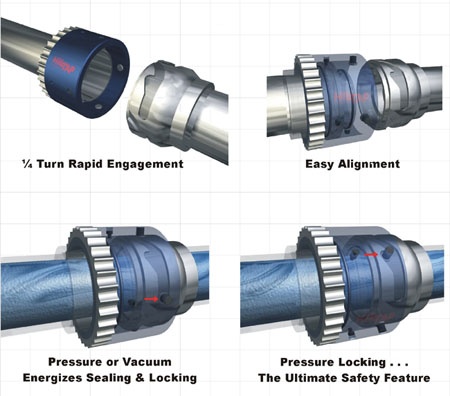

- Rapid engagement, 1/4 twist on
/ off.
- Ultra low pressure or vacuum
locking.
- Built in pressure locking safety
locking feature. Coupling locks during uncoupling
should residual or line pressure be present.
- Smooth bore, ideal for pigging
applications.
- HILTAP metal sealing technology,
in conjunction with commercially available "O"
ring seals.
- Optional "snap in"
customized handles for those "tight spots".
- Built to B31.3 specifications
to ISO 9001-2000 Quality Standards.
- Pressure ratings equivalent to
ANSI 300.
- Available in 2", 3"
4" and 6" nominal sizes.
- Materials: SS 316 and Cold Temperature
Carbon Steel.
|
 |
|
|
