Operator
Area:
The low hinged handle, the enclosed design, safety
and emergency off push buttons provide a maximum
of safety for the operator.
Controls:
The multifunction handle head with progressive
ergonomics provides optimum operator comfort and
safety for the hands. All operator functions can
be reached without change of grip. The operating
push buttons for lifting/lowering are arranged
on both sides.
Drive System:
Powerful 1.5 kW (1 hour rating) separately excited
motor, vertical with high overload capacity and
excellent efficiency. The two-stage gear unit
operates at a particularly low noise level.
Brake System:
Electro-magnetic, disc brake acting directly on
the motor shaft. For maneuvering in confined spaces

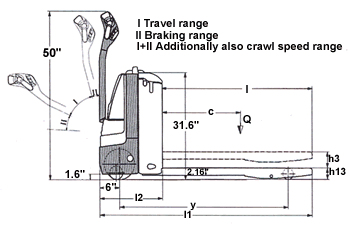

with the handle in upright position, crawl speed
may be activated. During this the brake is released
automatically and travel is possible at reduced
speed. Motor braking with energy reclamation in
zero position of the drive switch. Automatic rollback
protection on gradients. The drive control recognizes
a roll back and automatically activates the brake.
Drive Wheel:
Vulkollan tires as standard, dia. 9.06" x
2.76" wide.
Load Wheel:
Vulkollan tires as standard, dia. 3.35" x
4.33" wide (tandem design).
|
Spring
Loaded Side Support Casters:
Dia. 3.94", with Vulkollan tires. Built-in
spring and hydraulic cushioning elements ensure
high lateral stability in any travel situation.
Lifting and Lowering:
Compact unit with high pressure pump and sturdy
series wound motor with 2 kW capacity.
Drive Control:
State of the art impulse control electronics permits
for the first time a true speed control. Easy
regulating of the speed via the drive switch in
direction of travel and also when descending a
gradient the prescribed speed is maintained. Full
speed, independent of the load, i.e. also with
full load the maximum permissible speed of 3.7
mph is achieved. The setting of the drive parameters
acceleration, final speed and motor brake is possible
via the impulse control. By means of an additional
handle switch, crawl speed may be activated. For
safe maneuvering in danger zones, the travel speed
is automatically reduced to slow travel.
Chassis:
Rated for loads up to 6000 lb. Robust construction
of elements of 0.31" thickness. The collision
guard on the battery container provides additional
protection for the chassis.
Battery / Charger:
4 options:
(1) 24 V Industrial (195 Ah)
(1) 24 V Industrial (225 Ah)
(1) 24 V Industrial (255 Ah)
(all with separate charger)
Easy Servicing:
All components are easily accessible
|
