The

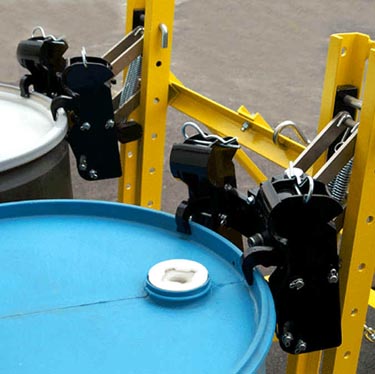

Eagle 2 Series of lift truck attachments utilize a light
duty Eagle-Grip™ double articulating clamping mechanism
for handling any size steel, fibre or plastic chimed drum.
EG2LDCM-CM can attach to many walkie stackers (consult factory
with make and model of stacker for proper fitting). Other
EG2 models are provided with totally enclosed fork pockets
and a safety chain to attach to the lift truck carriage.
All Eagle-Grip™ clamping mechanisms are completely automatic
requiring no electrical or hydraulic connections. The articulating
or swivel feature of the heads permits simple pickup of
drums that are misaligned and slightly separated. Standard
belt bases support the lower side of the drum eliminating
dents or cosmetic marring. Optional non-sparking jaws are
available for handling flammables.
Made in U.S.A.
 Grip
& Weigh™ System
 |
| EAGLE-GRIP
™ 2 SERIES (Light Duty - Double Clamping Mechanism) |
| Model |
Capacity |
Weight |
H
x L x W |
Drums |
Description |
| (lbs/kg) |
(lbs/kg) |
(inches) |
(mm) |
Handled |
| EG2LDCM-CM |
1000/450 |
95/43 |
33x15x18 |
838x381x457 |
1 |
Carriage
Mount |
| EG2LDCM-F |
1000/450 |
310/136 |
37x37x33 |
940x940x838 |
1 |
Fork
Mount |
| EG2LDCM2-F |
2000/900 |
390/177 |
37x37x33 |
940x940x838 |
1or
2 |
Fork
Mount |
|
|
Model
#
|
Description
|
Capacity
|
Drums
Handled
|
Price(USD)
|
| EG2DCM-CM |
Carriage
Mount (Class II) |
1000
lbs
|
1
|
$1,150.00
|
| EG2SCM-F |
Fork
Mount |
1000
lbs
|
1
|
$1,225.00
|
| EG2SCM2-F |
Fork
Mount |
1000
lbs
|
1
or 2
|
$2,375.00
|
|
Model
#
|
Description
|
Price
|
| -EX |
Spark
Resistant Jaws(Price per clamping mechanism) |
$250.00
|
| -S |
Non-intrinsically
Safe Scale with Doran™ Model 8000XL Indicator |
$2,550.00
|
| -IS |
Intrinsically
Safe Scale with Doran™ Model 8000IS Indicator-Class
I,II,III, Div. 1,2 Group A,B,C,D,E,F,G |
$3,725.00
|
|
