EZY-ROL™ Drum
Handling Trucks

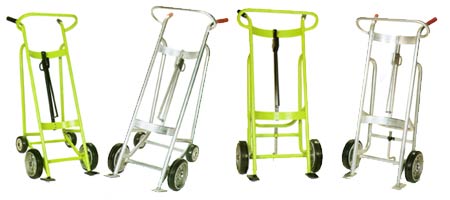

EZY-ROL™ Drum Handling Trucks
feature Valley Craft's patented EZY-Tilt™ design that
makes it easy to "break over" the heaviest of loads. These
trucks make moving heavy drums fast and easy. Simply tip
the frame of the truck up against the drum. This raises
the wheels off the ground and automatically engages the
chine hook to secure the drum. The shoes become the fulcrum
point, providing better leverage for tipping the drum
back onto the wheels.
- Automatic spring-loaded
chine hook provides fast, one-person loading
and unloading
- Shoes become
the fulcrum point when loading for easy breaking-over
of loads and are designed so drum automatically
unloads when tilted forward. Shoes adapt to
fit 30- or 55-gallon drums.
- "Box frame"
construction places support at the points
of greatest stress
- Joints are form-fitted
and welded continuously
- Steel frame
is built of rugged 14-gauge 1.125" O.D. steel
tubing
- 1" steel axle
is encased in a protective housing for longer
life and ease of replacement
- Heavy-duty wheels
are equipped with either pneumatic or solid
tires for trouble-free handling on any surface
(see options below)
|
.gif)
Model No. 1735 |
Fulcrum Shoes |

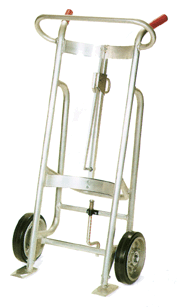

Aluminum Frame 2-Wheel Truck
Model No. 1625
- 1 5/16" O.D. aluminum
tubing is lighter than steel yet extremely sturdy
- Spark resistant
- Recommended for use
around corrosive materials and when truck must be
transported frequently
|
Model #
|
Brakes
|
12" x 3.5"
Pneumatic
Tires
|
10" x 2.5"
Demountable
Solid Tires
|
10" x 2.5"
Molded-on
Solid Tires
|
Weight
|
Capacity
|
| 2-Wheel
Drum Trucks, Steel Frame |
|
1600
|
|
X
|
|
|
67 lbs.
|
1000 lbs.
|
|
2025
|
X
|
X
|
|
|
78 lbs.
|
1000 lbs.
|
|
1735
|
|
|
X
|
|
68 lbs.
|
1000 lbs.
|
|
2150
|
X
|
|
X
|
|
78 lbs.
|
1000 lbs.
|
|
1895
|
|
|
|
X
|
66 lbs.
|
1000 lbs.
|
| 2-Wheel
Models, Aluminum Frame |
|
1500
|
|
X
|
|
|
45 lbs.
|
1000 lbs.
|
|
1925
|
X
|
X
|
|
|
50 lbs.
|
1000 lbs.
|
|
1625
|
|
|
X
|
|
50 lbs.
|
1000 lbs.
|
|
2050
|
X
|
|
X
|
|
55 lbs.
|
1000 lbs.
|
|
1771
|
|
|
|
X
|
55 lbs.
|
1000 lbs.
|
4-Wheel Models
Model No. 2895
- Automatic spring-loaded
chine hook provides fast, one-person loading
and unloading
- "Box frame"
construction places support at the points
of greatest stress
- Joints are form-fitted
and fixed with solid welded continuously
- Standard frame
is built of rugged 14-gauge 1.125" O.D. steel
tubing
- 1" steel axle
is encased in a protective housing for longer
life and ease of replacement
- Heavy-duty wheels
are equipped with either pneumatic or solid
tires for trouble-free handling on any surface
(see options below)
- 6" rear wheels
let truck carry entire weight of load
|
Shoes become the fulcrum point when loading for
easy breaking-over of loads and are designed so
drum automatically unloads when tilted forward.
Shoes adapt to fit 30- or 55-gallon drums. |

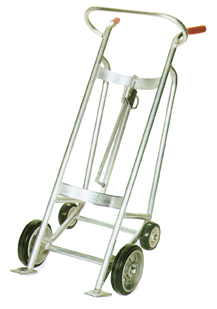

Optional Aluminum Frame 4-Wheel
Truck
Model No. 2425
- 1 5/16" O.D. aluminum
tubing is lighter than steel yet extremely sturdy
- Spark resistant
- Recommended for use
around corrosive materials and when truck must be
transported frequently
|
Model #
|
Brakes
|
12" x 3.5"
Pneumatic
Tires
|
10" x 2.5"
Demountable
Solid Tires
|
10" x 2.5"
Molded-on
Solid Tires
|
Weight
|
Capacity
|
| 4-Wheel
Drum Trucks, Steel Frame |
|
2375
|
|
X
|
|
|
84 lbs.
|
1000 lbs.
|
|
3160
|
X
|
X
|
|
|
84 lbs.
|
1000 lbs.
|
|
2895
|
|
|
X
|
|
80 lbs.
|
1000 lbs.
|
|
3450
|
X
|
|
X
|
|
83 lbs.
|
1000 lbs.
|
|
2845
|
|
|
|
X
|
82 lbs.
|
1000 lbs.
|
| 4-Wheel
Models, Aluminum Frame |
|
2175
|
|
X
|
|
|
49 lbs.
|
1000 lbs.
|
|
2960
|
X
|
X
|
|
|
54 lbs.
|
1000 lbs.
|
|
2425
|
|
|
X
|
|
48 lbs.
|
1000 lbs.
|
|
3210
|
X
|
|
X
|
|
52 lbs.
|
1000 lbs.
|
|
2645
|
|
|
|
X
|
50 lbs.
|
1000 lbs.
|
|
|
|
