TOTE & DRUM FILLING
MACHINES
PG551-SP-S
Operator
Friendly Design
- Accurate, durable, easy, fast,
net weight filler
- Safe operation through solid design
- Easy Reach Controls
- Allen Bradley HMI and PLC
- Intrinsic and Non-Intrinsic design.
(Class1, Division 1, Group C&D
- Low Cost Design
Multiple
Container Capabilities
 Tote
|
Drums |
Large
Capacity Tanks |
Flexible
Design
- Semi Automatic Operation. Fully
Automatic Available
- Different Lance Styles Available
- Automatic Conveyance Logic for
buffering product.
- Automated Statistics Reporting
Package available
- Top Fill, Sub-Fill and Bottom
Fill Modes available
- Product Tracking above or below
product level.
- Stainless Steel on critical contact
parts
- Platfrom or powered Rollers
- Fills from light to heavy viscosities
- Fume Hood Available
|
Specifications
| Model Number |
PG551-SP-S |
| Controls Operating Voltage |
110 VAC |
| Pneumatic |
Min 80 PSI, Max 120 PSI |
| SCFM |
15 |
| Supply line size |
3/4 |
| System Width |
180" |
| System Depth |
98.5" |
| System Height |
132" |
|
Highlights
- ACCURATE NET WEIGHT FILLING.
- SIMPLE DESIGN
- INDIVIDUAL WEIGHT SCALES
FOR ACCURATE FILLING.
- EASY OPERATION AND CONTROLS.
- MODULAR DESIGN SAVES FLOOR
SPACE
|
- CLOSED TUBE FRAME DESIGN-NO
PRODUCT CATCH POINTS.
- TOPFILL, SUB-FILL, AND BOTTOM
FILL MODES AVAILABLE.
- PRODUCT RECIPES AVAILABLE
FOR EASY SETUP.
- EASY ACCESS TO ELECTRICAL
AND MECHANICAL COMPONENTS
|
|

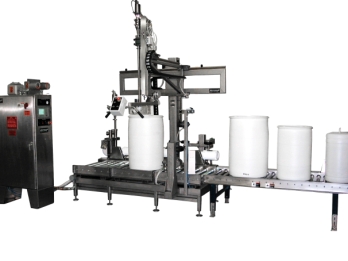

PG551-SP-A-X
Operator Friendly
Design
- Accurate, durable, easy, fast,
net weight filler
- Safe operation through solid design
- Easy Reach Controls
- Allen Bradley HMI and PLC
- Intrinsic and Non-Intrinsic design.
(Class1, Division 1, Group C&D
- Clean, No Collect design.
- Low Cost
Multiple Container
Capabilities
Tote |
Drums |
Large
Capacity Tanks |
Flexible Design
- Different Lance Styles Available
- Automatic Conveyance Logic for
buffering product.
- Multiple Lance Setup for product
switch-over
- Automated Statistics Reporting
Package available
|
| Model Number |
PG551-SP-A-X |
| Controls Operating Voltage |
110 VAC |
| Pneumatic |
Min 80 PSI, Max 120 PSI |
| SCFM |
20 |
| Supply line size |
3/4 |
| System Width |
95 |
| System Depth |
158 |
| System Height |
136 |
|
Highlights
- ACCURATE NET WEIGHT FILLING.
- SIMPLE DESIGN
- INDIVIDUAL WEIGHT SCALES
FOR ACCURATE FILLING.
- EASY OPERATION AND CONTROLS.
|
- CLOSED TUBE FRAME DESIGN-NO
PRODUCT CATCH POINTS.
- TOPFILL, SUB-FILL, AND BOTTOM
FILL MODES AVAILABLE.
- PRODUCT RECIPES AVAILABLE
FOR EASY SETUP.
|
|
PG3601-SP-S
Operator Friendly
Design
- Accurate, durable, easy, fast,
net weight filler
- Safe operation through solid design
- Easy Reach Controls
- Logical Menu System for Easy Operation
and Setup
- Allen Bradley HMI and PLC
- Intrinsic and Non-Intrinsic design.
(Class1, Division 1, Group C&D
- Low Cost Design
Multiple Container
Capabilities
Tote |
Drums |
Large
Capacity Tanks |
Flexible Design
- Semi Automatic Operation. Fully
Automatic Available
- Different Lance Styles Available
- Lid Placers available
- Automatic Conveyance Logic for
buffering product.
- Automated Statistics Reporting
Package available
- Stainless Steel on critical contact
parts
- Platfrom or powered Rollers
- Fills from light to heavy viscosities
- Fume Hood Available
|
Specifications
| Model Number |
PG3601-SP-S |
| Controls Operating Voltage |
110 VAC |
| Main Supply Voltage |
240/480 VAC |
| Pneumatic |
Min 80 PSI, Max 120 PSI |
| SCFM |
15 |
| Supply line size |
3/4 |
| System Width |
132 |
| System Depth |
73.37" |
| System Height |
77.62 |
|
Highlights
- ACCURATE NET WEIGHT FILLING.
- SIMPLE DESIGN
- INDIVIDUAL WEIGHT SCALES
FOR ACCURATE FILLING.
- EASY OPERATION AND CONTROLS.
- MODULAR DESIGN SAVES FLOOR
SPACE
|
- CLOSED TUBE FRAME DESIGN-NO
PRODUCT CATCH POINTS.
- TOPFILL, SUB-FILL, AND BOTTOM
FILL MODES AVAILABLE.
- PRODUCT RECIPES AVAILABLE
FOR EASY SETUP.
- EASY ACCESS TO ELECTRICAL
AND MECHANICAL COMPONENTS
|
|
|
|
|
|
