These
units are available on a trial towards purchase
plan of $900 a month with all trial fees waived
if purchased within trial period.
|
 With
Side Clamp Rotator
Drum-Haulers™ make easy tasks of handling plastic,
fibre and steel drums. This is the most ergonomic equipment
available for transporting, manipulating, weighing and dispensing
drums, with models suitable for most applications.
All models designed to fit through a standard 28” wide
x 84” high doorway opening. Being completely counterbalanced
units, having no outriggers as a means of stabilization,
Drum Haulers™ are designed to work in tightly confined
production areas. The large industrial battery provides
enough power to run continuously for a 2-shift operation
without recharging.
Side Hydraulic Clamp Rotators are the most compact and
widely used of all Drum-Hauler™ models. Having a 27.25"
overall width x 77-1/4" overall lowered height enables
the transporting of drums through standard doorways and
into tight production areas. Capable of removing or placing
drums from pallets, pallet racking, cabinets, spill pallets
and conveyors as well as dispensing by weight eliminates
the need for several pieces of equipment in congested production
areas.
- Drum Weight Capacity: 800 lbs. at 12'' L.C.!
- Drum Lift Height: 20'' to 108"!
- Voltage: 24 volt with ''E'' rating!
- Width: 28''; Length: 55''!
- Gradient performance - 15% empty, 10% @ 800lbs!
- Load Wheels: Tandem Polyurethane 3'' dia. X 4'' wide!
- Drive Wheel: Rubber 10'' dia. X 4'' wide!
- Battery: DEKA 24 volt industrial battery, 340 A.H.
w/SB-175 Anderson connector!
- Drum rotator - handles any size steel, poly or fibre
drums and paper rolls!
- MOS 90 Transistorized Speed Controller provides infinite
variable speed!
- Brake: Adjustable electromagnetic disc type!
- Safety reversing switch with horn in handle!
- Safety stability casters!
- Battery discharge indicator-gauge type!
- Paint: Safety Yellow enamel!
- 24 volt Auto Stop/Start Charger (110V)!
- Additional drum lift height
- Increased Drum Weight Capacity!
- "EE" Rating (FM approval)
- Scales with or without intrinsically safe indicators.
- 180 degree FORWARD Drum Dumping
|
|
|
|
Model
#
|
Description
|
Capacity
|
Lift
Height
|
Weight
|
Price
|
| DH80048CR |
Drum
Hauler/48" of Lift Height |
800
lbs
|
48"
|
2450
lbs.
|
$18,000.00
|
| DH80096CR |
Drum
Hauler/96" of Lift Height |
800
lbs
|
96"
|
2450
lbs.
|
$18,900.00
|

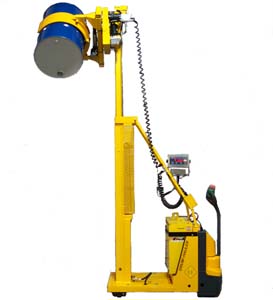

| DH800108CR |
Additional
Drum Lift Height to 108" vertical lift height
(Two Stage Mast) |
800
lbs
|
108"
|
2450
lbs.
|
$19,000.00
|
|
Model
#
|
Description
|
Price
|
| |

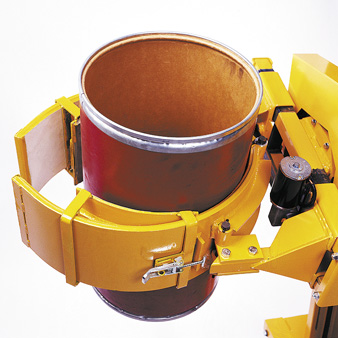

Small
Drum Adaptor |
$475.00
|
| Charger |
24
Volt Auto Stop/Start Battery Charger (110Volt/1 phase/60
hertz) |
$520.00
|
| Charger(Export) |
24
Volt Auto Stop/Start Battery Charger (208/240/480/1
phase/50 hertz) Export Only
|
$1,540.00
|
| -SPA |
F.D.A.
approved epoxy with Stainless Steel Hardware |
$1,200.00
|
| -GAL |
Anti-Corrosion
Package (Galvanized Unit) w/S.S. Pins and Fittings |
$1,400.00
|
| EE |
"EE"
Rating (Factory Mutual Approved) |
$1,800.00
|
| -S |
Non-intrinsically
Safe Scale with Doran™ Model 8000XL Indicator |
$2,200.00
|
| -IS |
Intrinsically
Safe Scale with Doran™ Model 8000IS Indicator-Class
I,II,III, Div. 1,2 Group A,B,C,D,E,F,G |
$3,600.00
|
| |

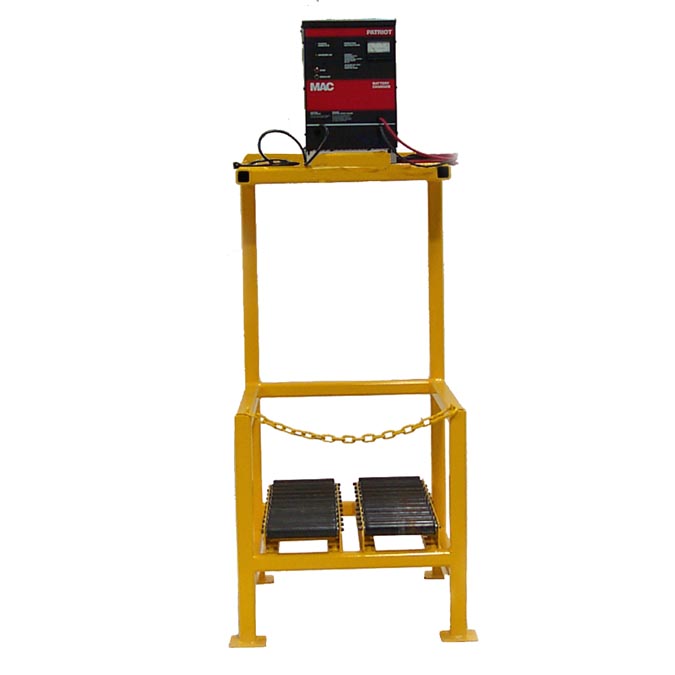

Battery Roll out Tray with conveyor
stand to support 2 batteries. |
$1,400.00 |
|
